Features a horizontal cutting surface (perpendicular to the shank) with high performance guide bearings. Woodline bits feature top and bottom bearings. Carbide tipped.
NOTE: Use bearing #791.010.00 and stop collar #541.001.00 for shank mounted bearing on CMT bits.

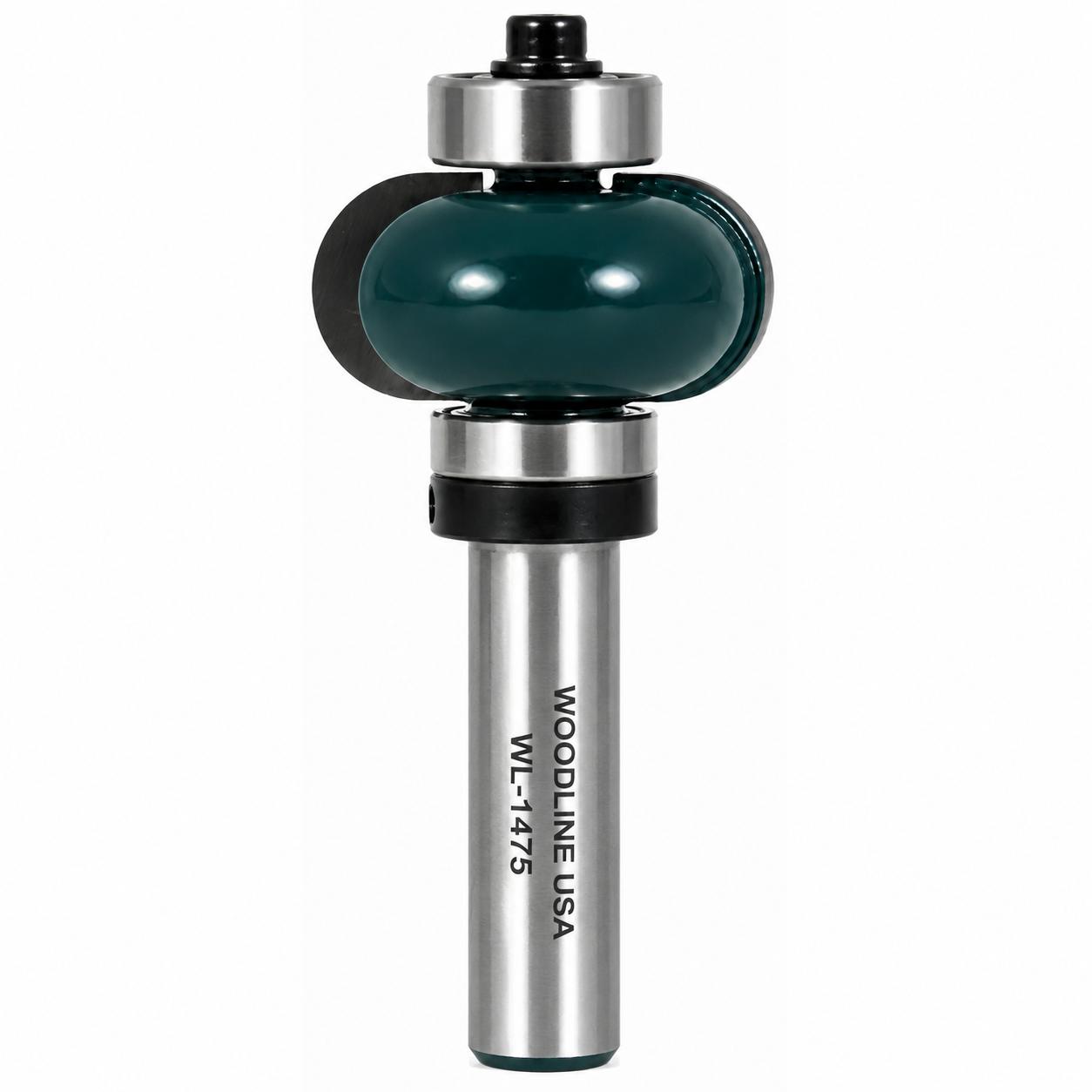

If you need some inspiration, check out The Coolest Cutting Board Ever using our WL-1475 bit.
EDGE FLUTING ROUTER BITS
QUESTIONS & ANSWERS
Ask a Question-
Is this bit used in fine woodworking cutting board?
The WL-1475 is the bit that is featured in the video for the Fine Woodworking coolest cutting board.
-
How do I read the measurements on your edge fluting router bits? Which number indicates the width of the groove and which indicates depth?
For example:
WL-1475 3/8″ Radius, 3/4″ Cut Length, 1-1/2″ Dia
3/4" Cut Length tells you the width of the groove. You control the depth of the groove, but the max depth would be 1.5"-.75(bearing size) divided by 2 =.375"

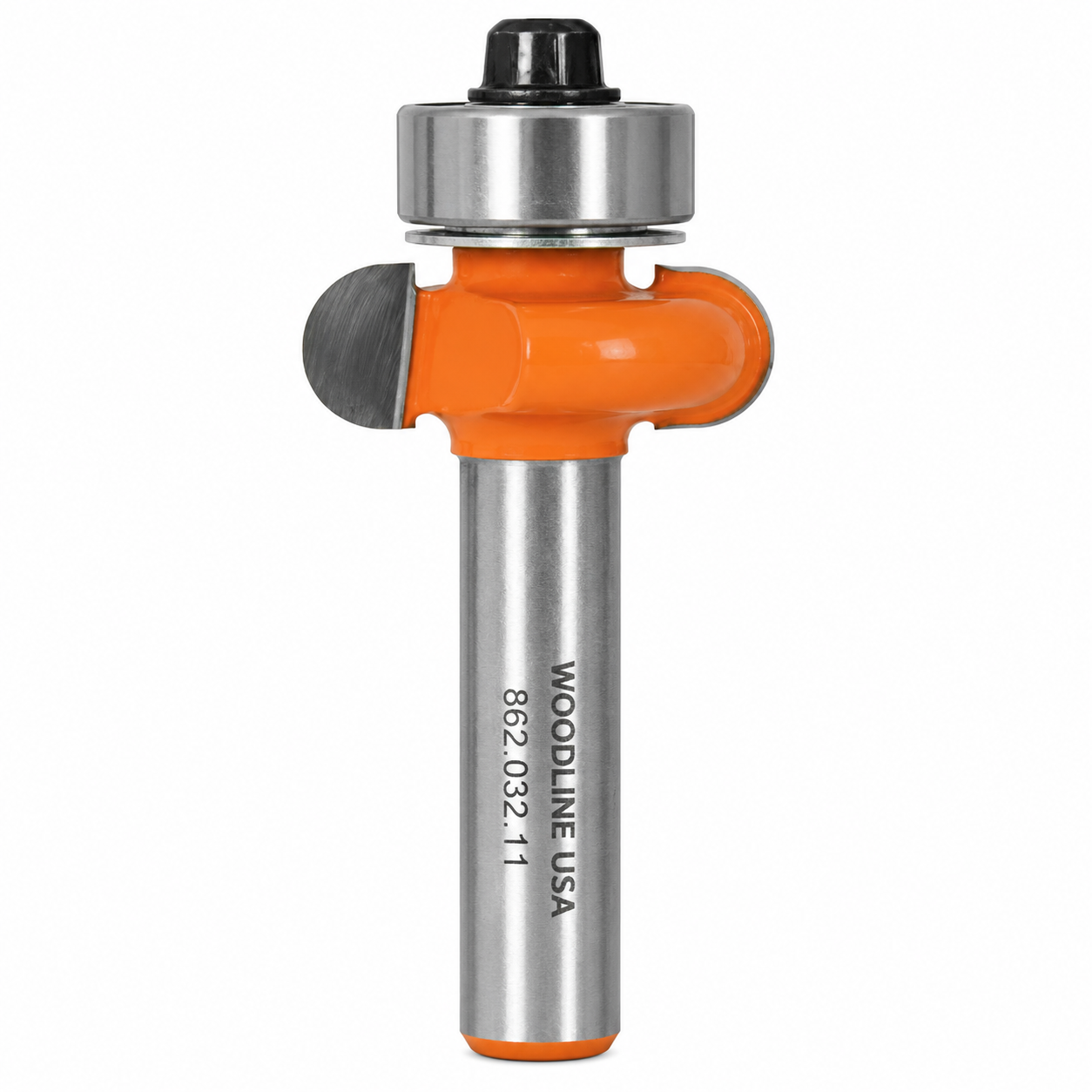

862.032.11 1/8″ Radius, 1/4″ Cut Length, 3/4″ Dia
1/4″ Cut Length tells you the width of the groove. You control the depth of the groove, but the max depth would be .75"-.5(bearing size) divided by 2 =.125"
Did a great job of not burning my cutting board handles.
Just what I needed. It does a great job Thank you.
Worked great adding flute grooves to the ledge of my 9’ fireplace mantle. Not a pro woodworker, so making it up as I go.
Nice bit. Used various barring to adjust depth
Bit works great for handle on cutting board
