Solid Carbide Up-Cut Spiral 2D and 3D Carving Ball Nose and Flat Bottom, Zirconium Nitride (ZrN) Coated CNC Router Bit Collection
Specially designed for 2D and 3D CNC profiling and carving in plastic, aluminum, & wood with machines such as "i-Carver", CNC Shark®, ShopBot®, Datron & Carvewright™. The high-shear ball nose tips cut smooth 2D and 3D contours with reduced stepping while the proprietary ZrN coating (applied by the physical vapor deposition coating process) provides high resistance to wear, sharper cutting edges, extended tool life and less friction & heat buildup.

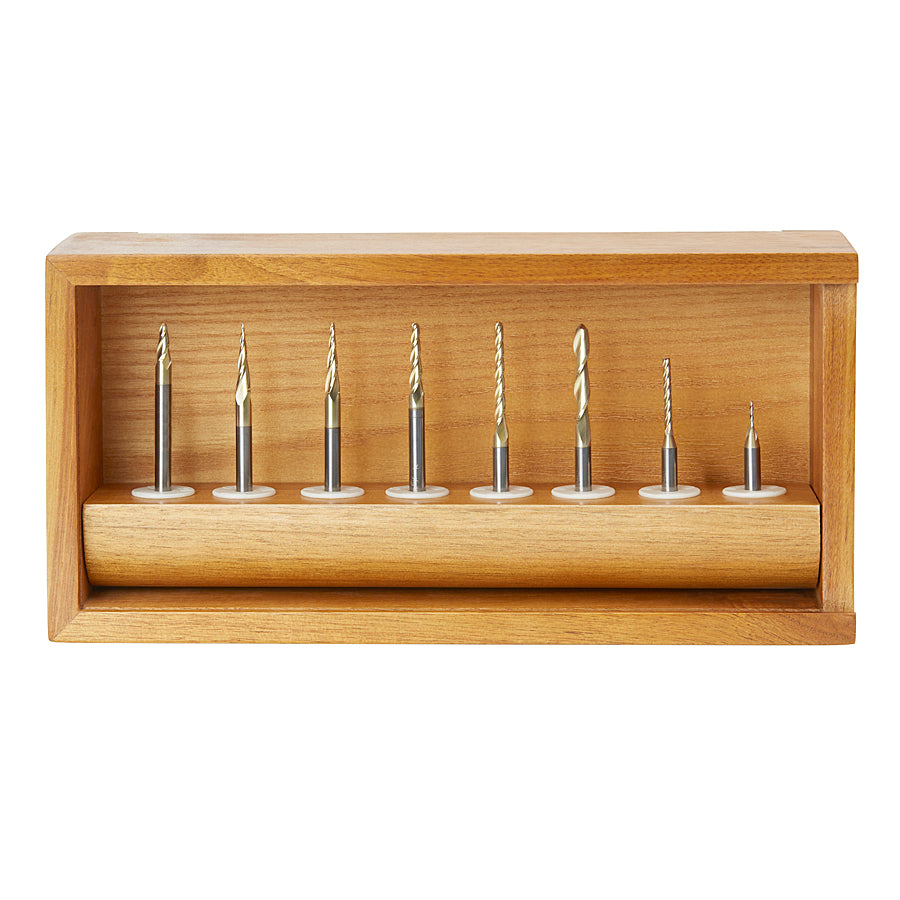

Stored in a solid wood showcase storage box with a Plexiglas® clear lid, set contains:
46280 CNC 2D & 3D Carving 3 Flute Solid Carbide Spiral 6.2° Tapered Angle Ball Tip 1/32ʺ Dia x 1/64ʺ Radius x 1ʺ x 1/4ʺ shank x 3ʺ Long
46282 CNC 2D & 3D Carving 3 Flute Solid Carbide Spiral 5.4° Tapered Angle Ball Tip 1/16ʺ Dia x 1/32ʺ Radius x 1ʺ x 1/4ʺ shank x 3ʺ Long
46284 CNC 2D & 3D Carving 3 Flute Solid Carbide Spiral 1° Tapered Angle Ball Tip 1/8ʺ Dia x 1/16ʺ Radius x 1-1/2ʺ x 1/4ʺ shank x 3ʺ Long
46286 CNC 2D & 3D Carving 3 Flute Solid Carbide Spiral 3.6° Tapered Angle Ball Tip 1/8ʺ Dia x 1/16ʺ Radius x 1ʺ x 1/4ʺ shank x 3ʺ Long
46288 CNC 2D & 3D Carving 3 Flute Solid Carbide Spiral 7° Tapered Angle Ball Tip 1/8ʺ Dia x 1/16ʺ Radius x 1/2ʺ x 1/4ʺ shank x 3ʺ Long
46294 CNC 2D & 3D Carving 2 Flute Solid Carbide Spiral 0.10° Tapered Angle Ball Tip 1/4ʺ Dia x 1/8ʺ Radius x 1-1/2ʺ x 1/4ʺ shank x 3ʺ Long
46292 CNC 2D & 3D Carving 3 Flute Solid Carbide Spiral Flat Bottom 1/8ʺ Dia x 1-3/32ʺ x 1/4ʺ shank x 2-1/2ʺ Long
46290 CNC 2D & 3D Carving 4 Flute Solid Carbide Spiral Flat Bottom 1/16ʺ Dia x 5/16ʺ x 1/4ʺ shank x 2-1/2ʺ Long

Designed for cutting:

  • Precision 2D and 3D large scale carving
  • Dimensional signage
  • 3D millwork
  • 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
  • Compatible with CarveWright™ and CompuCarve woodworking systems
  • Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials



AMS-136 CNC 2D/3D CARVING TAPERED BALL NOSE SET

CNC 2D/3D CARVING TAPERED BALL NOSE ROUTER BIT SET

$385.35 $513.75
