18-Pc Signmaking Advanced CNC Router Bit Collection

The ultimate set for signmakers. Designed for creating signs and other CNC projects in a variety of materials. For the most demanding signmaking, lettering and engraving tasks. Each router bit is manufactured from Amana's exclusive grade carbide according to stringent quality standards.

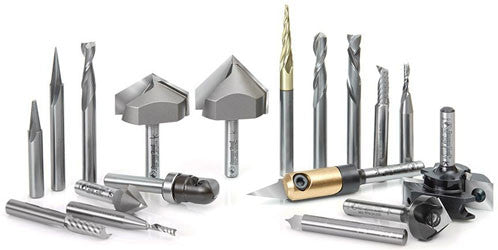

Stored in a solid wood showcase storage box with a Plexiglas® clear lid, set contains:

RC-45910 Carbide Tipped Insert Core Box 1/4ʺ Radius x 1/2ʺ Dia x 1/2ʺ x 1/4ʺ shank 1-Flute

56125 Solid Carbide Point Cutting Roundover 1/8ʺ Radius x 1/4ʺ Dia x 5/16ʺ x 1/4ʺ shank

45783 Solid Carbide Carving Liner 18° x 1/4ʺ Dia x 5/8ʺ x 1/4ʺ shank x 1-Flute

RC-45711 In-Tech Insert Carbide V Groove 45° x 11/16ʺ Dia x 21/64ʺ x 1/4ʺ shank

45780 Solid Carbide V Groove Engraving 7.5° x 3/16ʺ Dia x 1/2ʺ x 1/4ʺ shank

45705 Carbide Tipped V Groove 60° x 1/2ʺ Dia x 5/8ʺ x 1/4ʺ shank

45751 Carbide Tipped V Groove 90° x 1-1/4ʺ Dia x 15/16ʺ x 1/4ʺ shank

45756 Carbide Tipped V Groove 120° x 1-1/4ʺ Dia x 21/32ʺ x 1/4ʺ shank

46170 CNC Solid Carbide Compression Spiral 1/4ʺ Dia x 7/8ʺ x 1/4ʺ shank

46376 CNC Solid Carbide Up-Cut Ball Nose Spiral 1/4ʺ Dia x 1ʺ x 1/4ʺ shank

46102 Solid Carbide Spiral Plunge 1/4ʺ Dia x 3/4ʺ x 1/4ʺ shank Up-Cut

RC-2248 CNC Insert Solid Carbide Mini Spoilboard Surfacing, Rabbeting, Flycutter & Leveler 1-1/2ʺ Dia x 15/32ʺ (12mm) x 1/4ʺ shank

51454 Solid Carbide CNC Spiral 'O' Single Flute, Aluminum Cutting 1/8ʺ Dia x 1/2ʺ x 1/4ʺ shank x 2ʺ Long Up-Cut

51411 Solid Carbide CNC Spiral 'O' Single Flute, Plastic Cutting 1/8ʺ Dia x 1/2ʺ x 1/4ʺ shank x 2ʺ Long Up-Cut

46282 CNC 2D and 3D Carving 4 Flute 5.4° Tapered Angle Ball Tip 1/16ʺ Dia x 1/32ʺ Radius x 1ʺ x 1/4ʺ shank x 3ʺ Long Solid Carbide Up-Cut Spiral ZrN Coated

51404 Solid Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4ʺ Dia x 3/4ʺ x 1/4ʺ shank Up-Cut

RC-1075 CNC In-Groove Insert Engraving Tool Body 1/4ʺ shank

RCK-360 Solid Carbide Insert 30° x 0.005ʺ V Tip Width Engraving Knife for In-Groove System

 Designed for cutting:

  • Aluminum, Brass, Bronze, Copper
  • Carbon Fiber
  • Laminate
  • MDF
  • Melamine
  • Plastic/Acrylic
  • Solid Surface
  • Wood
  • Veneered Plywood
AMS-132 CNC ADVANCED SIGNMAKING SET

CNC ADVANCED 18pc SIGNMAKING ROUTER BIT SET

$645.45 $860.55
